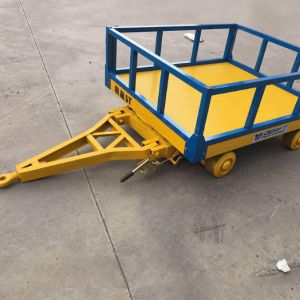

5t Yellow Four Side Rails Baggage Dolly Trailer
1. Introduction of industrial workshop trailers
The workshop trailers are not powered and are meant to be pulled or
towed by another powered transfer cart or a fork lift (of adequate
capacity). They are a cost effective alternative to purchasing
another powered transfer cart. For on-rail applications, a winch
can be used to move carts. Pull type transfer carts are versatile
and can be easily customized to suit applications.
Henan BETTER Material Handling line of Industrial Trailers include
vary models and features to meet the needs of all major industries
including Automotive, Basic Metals, Heavy Manufacturing, Rigging,
Stamping, and more.
2. Paremeters of industrial workshop trailers
| Model | BP-2t | BP-5t | BP-10t | BP-16t | BP-20t | BP-25t | BP-30t | BP-40t | BP-50t | BP-63t | BP-80t | BP-100t | BP-150t |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Height(H) | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 50 | 75 | 75 |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 20 | 20 | 20 | 18 |
| Motor Power(kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Running Distance(m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
3. Application of industrial workshop trailers
The transfer carts vehicle of BETTER allow movement charges at
ground level in all types of industries and applications, such as
warehouse, within or without factory, bay to bay, airport, sea
port, manufacturing workshop, production lien, and son on.
4. Features of industrial workshop trailers to customize
-----Towed by forklifts , tractor or other machine.
------Welded construction of structural steel
------Two swivel casters and two rigid casters
------Coupling connection for towing
5. Special function of industrial workshop trailers to customize
• Urethane wheels
• Steel rail wheels
• Wheel brakes
• Wheel locks
• Fork lift pockets for transporting
• Weigh scales
• Stainless steel decking
6. Customer Service
If you are interested in product please feel free to contact us .
