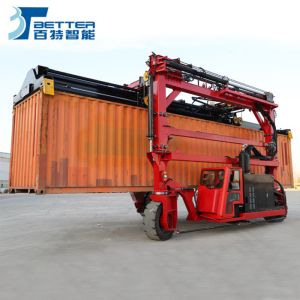

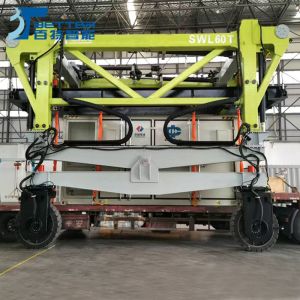

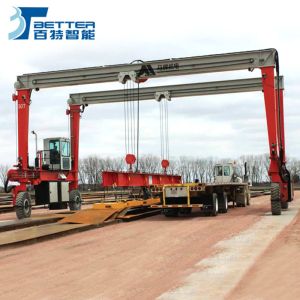

The Electric Remote-controlled Straddle Carrier is a
high-efficiency handling equipment designed for heavy-duty cargo
transfer in workshops, terminals, and storage yards. It features a
straddling design that allows it to move over and lift large items
like containers, machinery, or bulk materials, enabling flexible
and direct "pick-and-carry" operation. Combined with the electric
remote-controlled cargo transfer cart, it forms an integrated
logistics solution for indoor and outdoor environments. These
systems enhance operational efficiency, reduce manual labor,
improve safety through remote control, and support seamless
material flow in settings such as manufacturing plants, ports, and
logistics hubs.
2.Application
Workshop material turnover
In large production workshops, gantry-type forklifts can cross
production lines or stack materials, directly grasping and
transporting large workpieces and raw materials. The transfer
vehicle can flexibly shuttle between various workstations to
complete the fixed-point delivery of components and semi-finished
products
Cargo handling at the wharf
At the factory's wharf or freight area, gantry-type forklifts can
quickly complete the loading and unloading operations of containers
and large equipment. The transfer vehicles cooperate to complete
the short-distance transportation of goods from the wharf to the
storage area
Warehousing and logistics management
In the storage area, gantry-type forklifts facilitate the
three-dimensional storage and retrieval of goods as well as their
relocation within the warehouse. The transfer vehicle is
responsible for the allocation and turnover of goods between
different warehouse areas
Special working environment
In work areas with limited space, gantry-type forklifts take
advantage of their crossing characteristics to keep the passage
unobstructed. The transfer vehicle, with its flexibility and
precise positioning, accomplishes the transportation and
positioning of precision equipment
3.Parameter
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Total Power(kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 |
| Battery Capacity(Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage(V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 |
| Running Distance for One Charge(km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
4.Manufacturing process of warehouse transportation vehicle
CNC Cutting
Transport the steel plate from raw material warehouse to CNC
cutting workshop for cutting. After the cutting, the workers will
do some simple processing such as chip moving and setting out.
Preliminary Assembling
Put the cut steel plate together according to the design drawing
Welding
Weld the steel plate with automatic welding machine after the
preliminary assembling
Post weld treatment
Test the welding section after the welding, polish and burring.
Post weld treatment to eliminate welding stress
Spray Primer
Transport the structure part after processing to painting booth for
spraying primer. The main component of the primer is zinc rich
epoxy antirust paint. The primer is to two layers
Assembling
Assemble the structure parts after spraying primer with wheels,
motors and gear box, etc.
Paint finish
Transport the assembled cart to painting booth, inspect the
integrity of primer. After that paint the finish
Debugging
Debugging the cart after painting the finish with electric control
system, after the debugging, the cart will test without load. And
after the no load test, the cart will be tested with load. After
the inspection, the cart will be transported to storage area.
5.Product Details
6.Packaging&Shipping
*For lenght is less than 6m, the width is less than 2.2m. It will
be transported by 20ft container. If the length is longer than 5.9m
and less than 12m, it will be transported by 40ft container. If the
quantity is 2 sets or 3 sets, they can be transported by full
container. If the quantity is 1 set, it can be transported by LCL
Container.
* If the length is less than 12m, the width is beyond 2.2m. It
needs to be transported by flat rack (20 or 40 ft) . If the
equipment is beyond above dimension, and quantity need to consider
bulk cargo.
7.FAQ
How can Transfer Carts be customized?
Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per
day:)
What is the travel area you need to cover? (Rail/cement floor,
Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.
