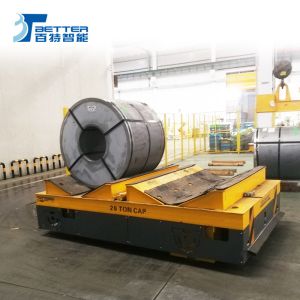

5 Ton Electric Flat Cart Trackless Electric Flat Car Workshop Transfer Trolley

Product Categories

Xinxiang Better Smart Transport Equipment Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

5 Ton Electric Flat Cart Trackless Electric Flat Car Workshop Transfer Trolley

Ask Lasest Price
Price :	US$3000-3500
Brand Name :	BETTER
Delivery Time :	15-30 days
Payment Terms :	L/C,T/T
Supply Ability :	50 Sets/Month
Model Number :	BWP

Add to Cart

Product Details
Company Profile

5 Ton Electric Flat Cart Trackless Electric Flat Car Workshop Transfer Trolley

5 Ton Electric Flat Cart Trackless Electric Flat Car Workshop Transfer Trolley

Introduction of Electric Heavy Equipment
We have designed transfer cars for all kind of industries. Our versatility to manufacture this vehicles is proven by our experience and adaptations. These transfer cars can be made according to our clients' needs and with clear commitment to meet them.
Carts are mounted on steel rail for shuttling along a fixed path. They can be DC battery powered or AC powered. Typically used for moving materials such as steel tubes, tanks of liquids, steel coils, steel beams, machine parts from one location to another. Standard sizes from 4 x 4 to 6 x 8. Larger cart capacities and sizes are available for specific applications.

Application of Electric Heavy Equipment
The Electric Heavy Equipment of BETTER allow movement charges at ground level in all types of industries and applications, such as assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).

Parameter

Model	BWP-5t	BWP-20t	BWP-30t	BWP-40t	BWP-50t
Rated Load(t)	5	20	30	40	50
Impacted rated load(t)	5	20	30	40	50
Structure of Frame	Steel plates welded, beam
thickness of the steel plate	8	14	14	16	16
Cart weight(t)	4.3	7.9	8.8	10	10.5
Max. wheel load (t)	2.8	5.6	7.7	10	12
Ground requirement	Cement floor or Steel plate ground
Ground Clearance(mm)	50	50	50	50	50
Table size (mm)	3000*2000	4500*2200	5000*2200	5500*2300	6000*2300
Height of the whole cart (mm)	450	600	650	700	700
Wheel base (mm)	1500	1700	1700	1800	1800
Axles distance (mm)	2500	3900	4300	4800	5200
Turning radius (mm)	2501	3901	4301	4801	5201
Turning type	Turning while driving with no stop
Control method for turning	Control button
Turning structure	Mechanical
Motor power (KW)	3.5	7	10	12	15
Wheel diameter (mm)	300 (4)	400 (4)	400 (6)	500 (6)	500 (6)
Wheel material	ZG55+hydropurture
Running speed (m/min)	0-15			0-12
Brake principle	Electric magnetic brake
Ground balance	mechanical automatic adjustment
Operation method	With wire or no wire
Battery model	D-250 24pieces	D-440 24pieces	D-250 36pieces	D-330 36pieces	D-440 36pieces
Charger's installation	Installed on cart			Split-type
Cart color	Yellow and warning sign
Radar control	3-0.3 m, Automatic stop for obstacles
Other functions	Turning light, night light and power display

Customers' Visit

Henan BETTER Handling Equipment Co., Ltd. Our company is specializing in the Design and Manufacture of Electric Heavy Equipment to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items.

Transportation of Electric Heavy Equipment
*For length is less than 6m, the width is less than 2.2m. Electric Heavy Equipment will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
*If the length is less than 12m, the width is beyond 2.2m. Electric Heavy Equipment needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.

Other products
Transfer Cart: Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart etc.
Rail Cart: Rail transfer cart, Cross-rail transport trolley, Curved rails transfer cart, S shape railway transport cart, L shape track transporter etc.
Industrial Trailer: Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer etc.
Cargo Transportation: Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie
Special Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipment, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle etc.

If you have any question please feel free to contact us .
